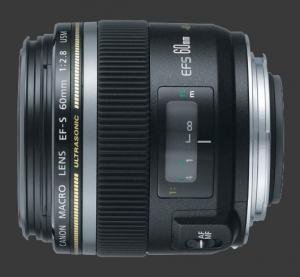

Canon EF-S 60mm F/2.8 Macro USM Lens

Macro capable with reproduction ratio of 1:1 or greater.Macro capable with reproduction ratio of 1:1 or greater.Fixed focal-length. No zoom.Fixed focal-length. No zoom.Rectilinear are normal lenses that show straight lines as straight lines.Rectilinear are normal lenses that show straight lines as straight lines.Thread size in milimeters for screw-on filters.Thread size in milimeters for screw-on filters.52Quick-Shift Autofocus, also called Direct Manual-Focus (DMF).Quick-Shift Autofocus, also called Direct Manual-Focus (DMF).

Lens Description

The Canon EF-S 60mm F/2.8 Macro USM is a short telephoto prime designed for cameras with a APS-C (1.6X) sensor. This bright prime has a 60mm focal-length. It provides the same field of view as a 96mm lens on a Full-Frame camera.

This prime can focus down to 20cm from the imaging plane which gives it a maximum magnification of 1X. The lens offers a Quick-Shift AF system which lets the user simply rotate the focus-ring to focus manually. A Super-Sonic motor inside the lens delivers very fast and relatively quiet AF.

This lens is only available for Canon EF. It directly attaches and is fully compatible with all Canon EF mount cameras with APS-C (1.6X) sensors.

Canon EF-S 60mm F/2.8 Macro USM
Buy from Amazon
Canon EF-S 60mm F/2.8 Macro USM

Canon EF-S 60mm F/2.8 Macro USM Specifications

Brand Canon Model EF-S 60mm F/2.8 Macro USM
Mount Canon EF Max FLM 1.6X
Focal Length 60mm View Angle 25°
Max ApertureF/2.8Min ApertureF/32
Min Focus20cmMagnification1X
Filter Size52mm Aperture Blades
Size (D x L)73 x 70mm Weight335g
TiltN / A ShiftN / A
Stabilization ProtectionNone
Zoom Drive N / A Focus Drive AF with Quick-Shift
Zoom Mechanism N / A Focus Mechanism External
Hood Bayonet Focus Motor Super Sonic
Perspective RectilinearIntroduced
